DieMaking Solution

EasyLift

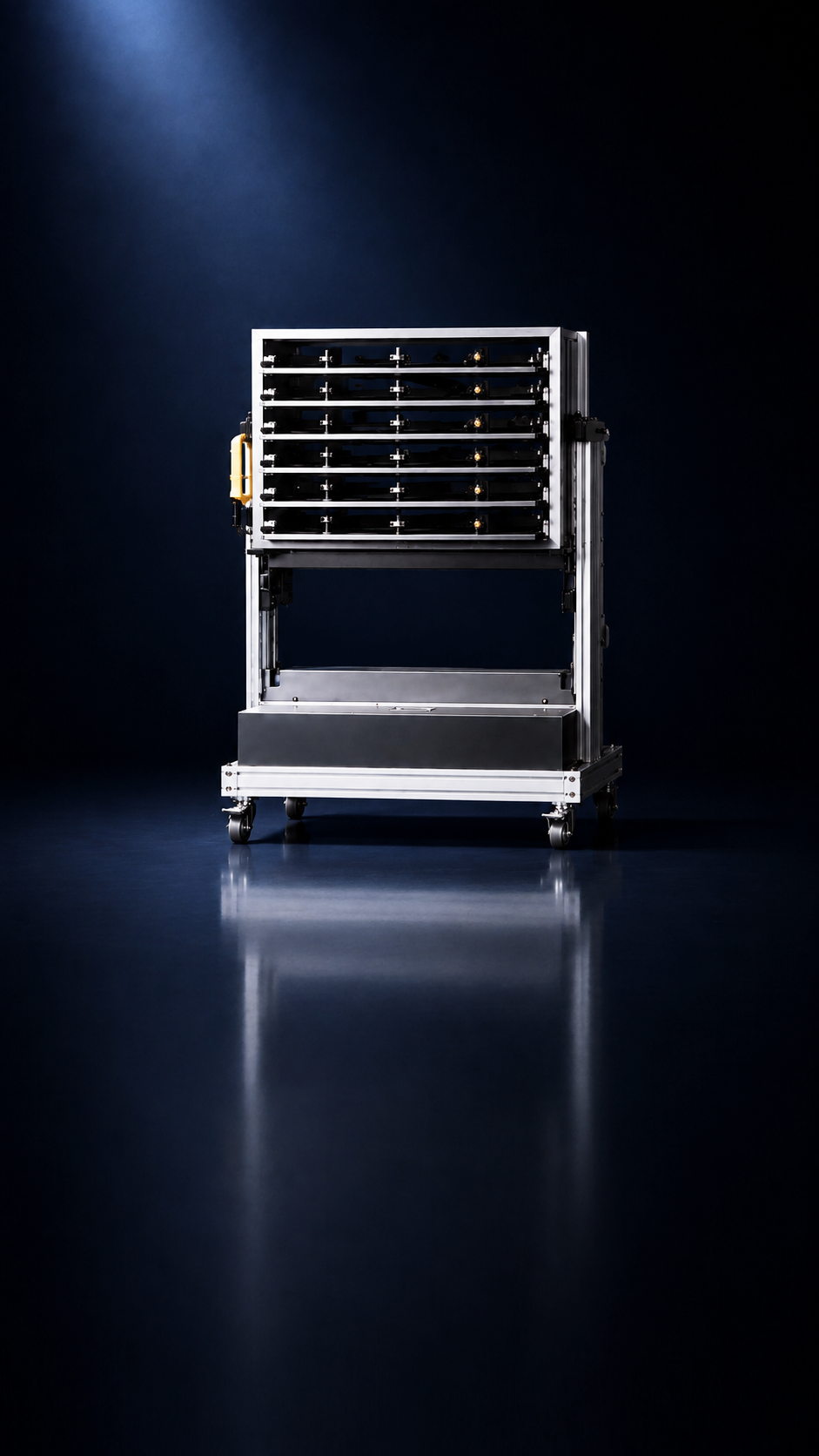

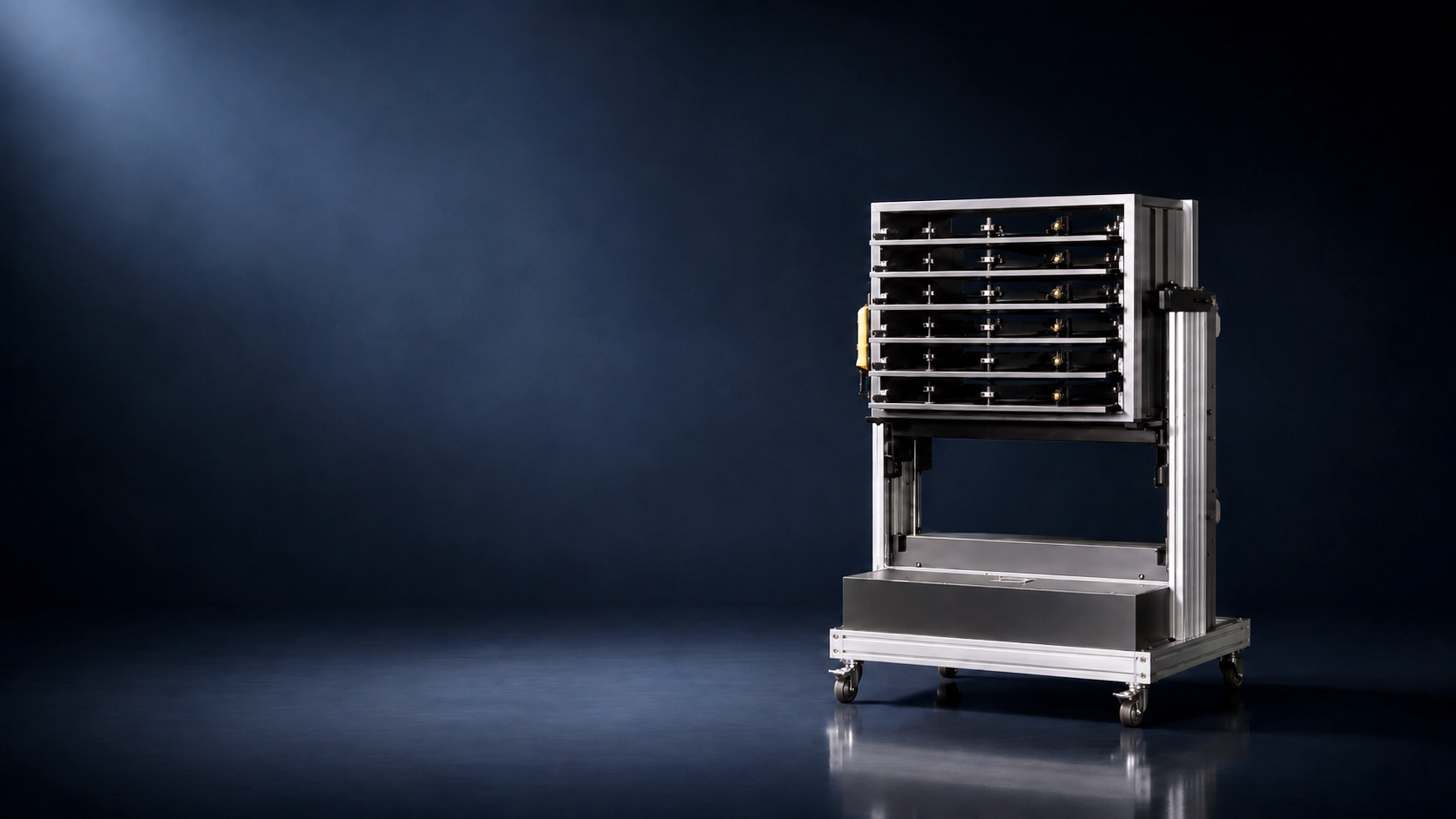

EasyLift는 안전하고 효율적인 작업 환경을 제공하는 SDS의 전자동 멀티 코일 스탠드입니다. 최대 6종의 코일을 동시에 적재할 수 있으며, 전자동 높이 조절 기능을 통해 원하는 코일로 빠르고 간편하게 전환할 수 있습니다.
die-making solutions

EasyLift

EasyLift는 안전하고 효율적인 작업 환경을 제공하는 SDS의 전자동 멀티 코일 스탠드입니다. 최대 6종의 코일을 동시에 적재할 수 있으며, 전자동 높이 조절 기능을 통해 원하는 코일로 빠르고 간편하게 전환할 수 있습니다.
01
plus icon
안전하고 편리한 코일 운용
무거운 칼 코일을 안정적으로 적재하고 손쉽게 교체할 수 있도록 설계되어, 작업자의 피로도를 줄이고 전체적인 작업 흐름을 한층 더 효율적으로 만들어 줍니다.
02
plus icon
최대 6단 멀티 코일 적재
최대 6종류의 코일을 동시에 적재 및 보관할 수 있어 작업별 코일 교체 동선을 단축하고 체계적인 관리가 가능합니다.
03
원터치 전자동 높이 조절
plus icon
간편한 전동 제어로 목표 코일의 높이를 빠르고 정밀하게 맞추어 교체 세팅 시간을 획기적으로 줄여줍니다.
04
plus icon
견고한 내구성과 손쉬운 유지보수
단순하면서도 튼튼한 프레임 설계를 적용하여 잔고장 없이 장기간 안정적인 연속 운용이 가능합니다.
05
plus icon
자유로운 작업장 이동성
고하중 캐스터(바퀴)를 기본 장착하여 작업 라인 배치나 공간 변화에 맞춰 장비를 손쉽게 이동하고 배치할 수 있습니다.
Specifications
사이즈
(W x D x H)
시스템
1,000mm x 760mm x 1,480mm
코일 카세트
6 Coils
칼 높이 규격
23.3mm - 50.8mm(최상단에는 60mm까지 수납 가능)
무게
운용무게
선적중량
150kg
260kg
파워
시스템
220VAC, Max. 15A, 50/60Hz, 1P
Specifications
사이즈(W x D x H)
시스템
1,000mm x 760mm x 1,480mm
코일 카세트
6 Coils
칼 높이 규격
23.3mm - 50.8mm(최상단에는 60mm까지 수납 가능)
무게
운용무게
150kg
선적중량
260kg
파워
시스템
220VAC, Max. 15A, 50/60Hz, 1P
