SignMaking Solution

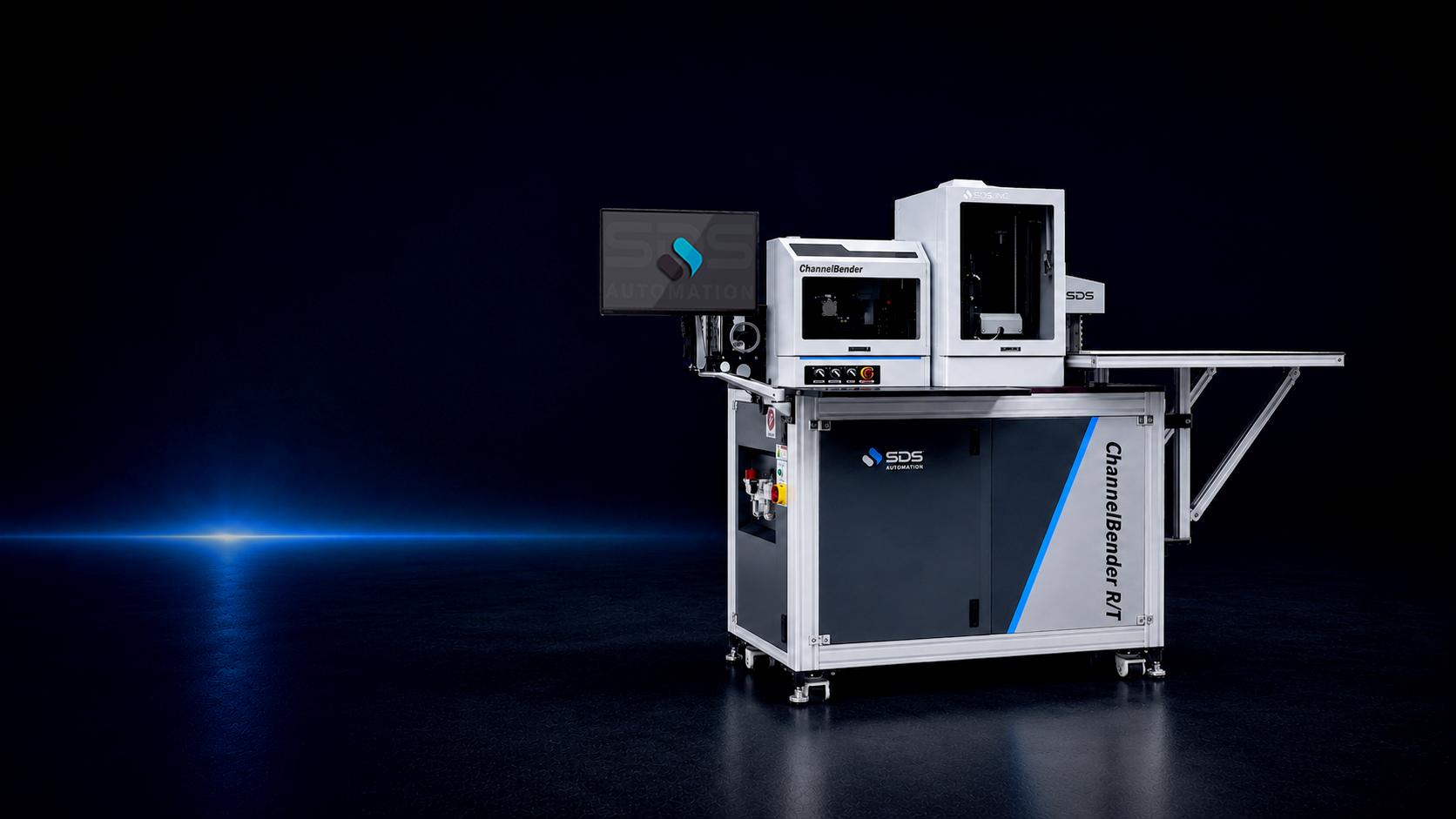

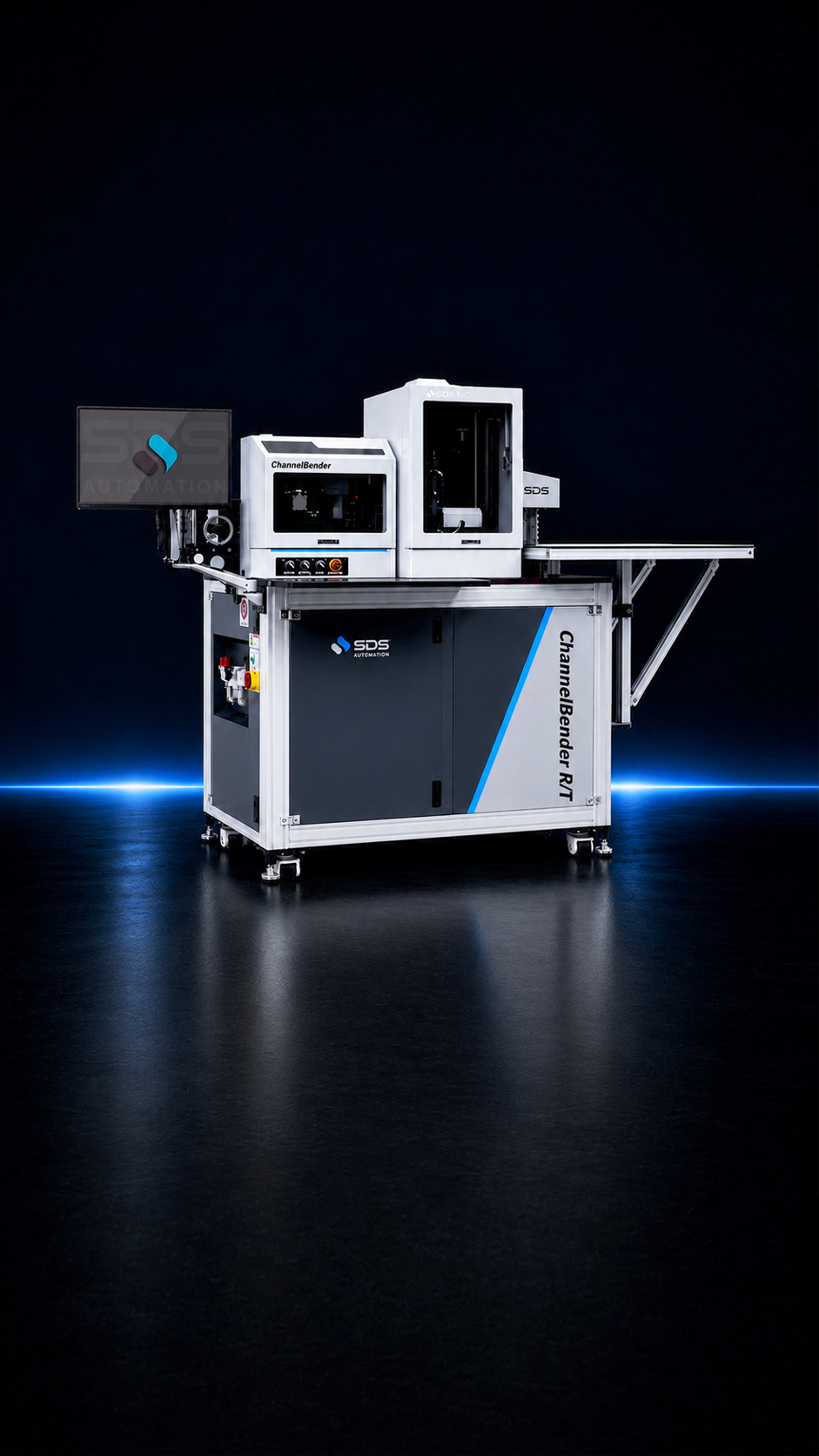

ChannelBender® R/T

플랜지(Flange) 없는 고급형 입체 문자 및 후광, 트림리스(Trimless®) 채널 레터 제작에 특화된 전용 자동화 시스템입니다.
die-making solutions

ChannelBender® R/T

플랜지(Flange) 없는 고급형 입체 문자 및 후광, 트림리스(Trimless®) 채널 레터 제작에 특화된 전용 자동화 시스템입니다.
01
plus icon
플랜지리스 고급 채널 레터 전용 성형 시스템
플랜지(Flange) 없는 고급형 입체 문자, 후광(Halo-lit), 트림리스(Trimless®) 채널 레터 제작에 특화된 전용 자동화 솔루션입니다.
02
plus icon
스트립 및 코일 자재의 폭넓은 규격 대응
스트립 및 코일 자재를 모두 지원하며, 입체 높이 25~127mm와 소재 두께 0.635~1.6mm의 폭넓은 규격을 안정적으로 가공합니다.
03
다양한 금속 및 특수 소재 가공 지원
plus icon
헤어라인·폴리싱 스테인리스 스틸, 유광 황동, 알루미늄, 연강, 구리에 이르기까지 폭넓은 금속 소재를 안정적으로 가공합니다.
04
plus icon
스크래치 없는 무결점 정밀 표면 성형
미러 스테인리스, 유광 황동, 구리 등 표면 손상에 취약한 고급 자재를 기계적인 벤딩 스크래치나 자국 없이 완벽하게 구현합니다.
05
plus icon
독자적인 Trimless® 전용 자재 완벽 지원
특허받은 LetterForm® 및 LiquiForm 자재를 안정적으로 가공하여, 아크릴 및 에폭시 수지 전면판을 활용한 트림리스 문자를 손쉽게 완성합니다.
06
plus icon
미세 세리프를 구현하는 고정밀 브로칭 기술
정밀 브로칭으로 소재에 미세 홈(Relief cut)을 형성하여 날카롭고 정교한 절곡 각도를 완성하며, 6.35mm 수준의 극소형 세리프까지 오차 없이 성형합니다.
07
plus icon
작업 효율을 극대화하는 전용 소프트웨어
ChannelBender 시리즈와 완벽하게 호환되는 전용 소프트웨어로, 직관적인 그래픽 인터페이스를 통해 누구나 손쉽게 운용할 수 있습니다. 홀 위치 인식, 라우터 비트 보정, 오프셋 오버랩 결합부터 벤딩 시뮬레이션 및 걸림 방지 기술까지 폭넓게 지원하여 작업의 정확도와 편의성을 극대화합니다.
08
plus icon
샌딩부터 벤딩까지, 하나의 라인으로 완성합니다.
CoilLift, ChannelSander, 그리고 ChannelBender 시리즈의 완벽한 결합을 통해 작업 효율은 극대화하고, 채널 제작의 완성도는 한 차원 더 끌어올리세요.
샌딩부터 벤딩까지, 하나의 라인으로 완성합니다.
CoilLift, ChannelSander, 그리고 ChannelBender 시리즈의 완벽한 결합을 통해 작업 효율은 극대화하고, 채널 제작의 완성도는 한 차원 더 끌어올리세요.
Samples

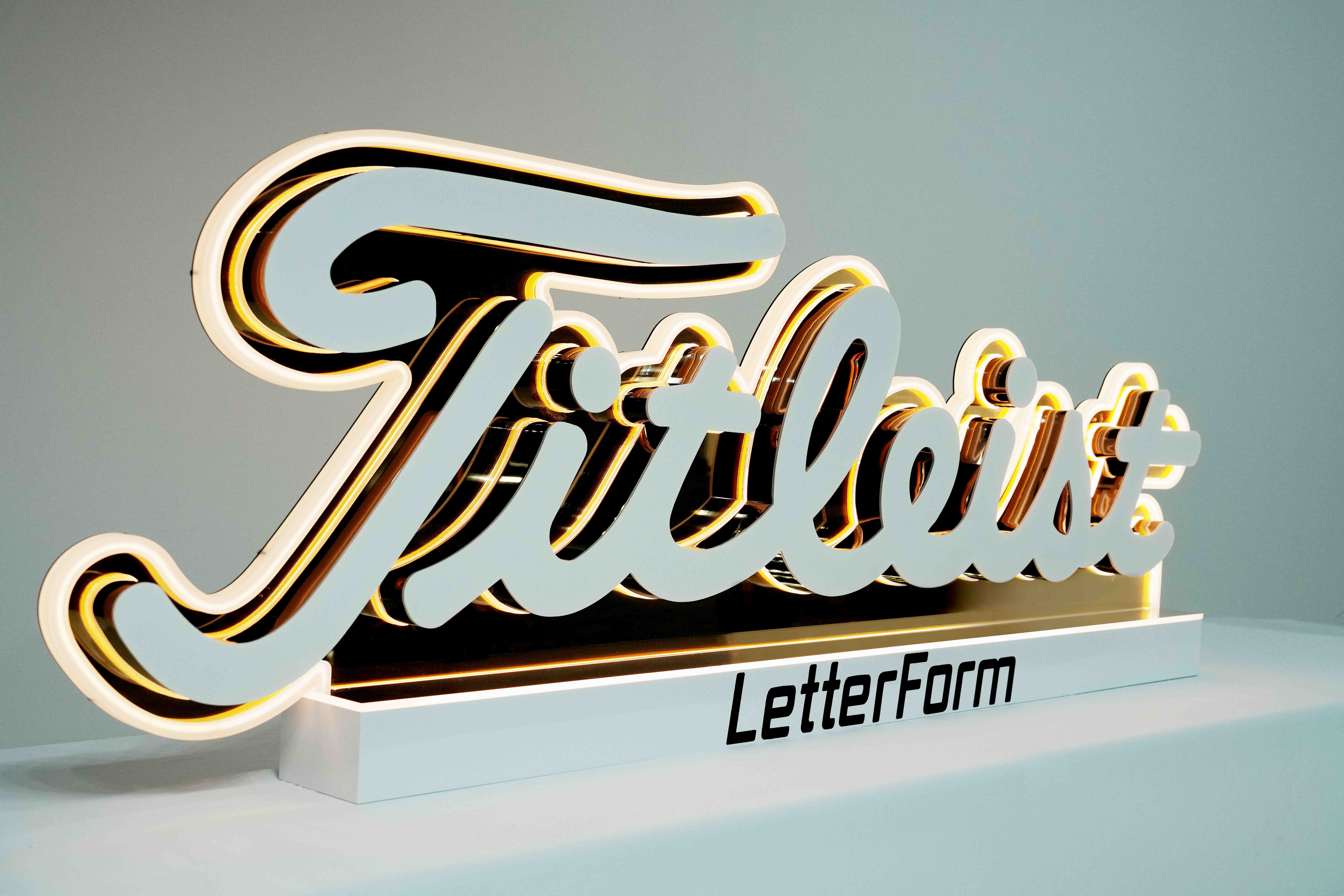

샘플 3

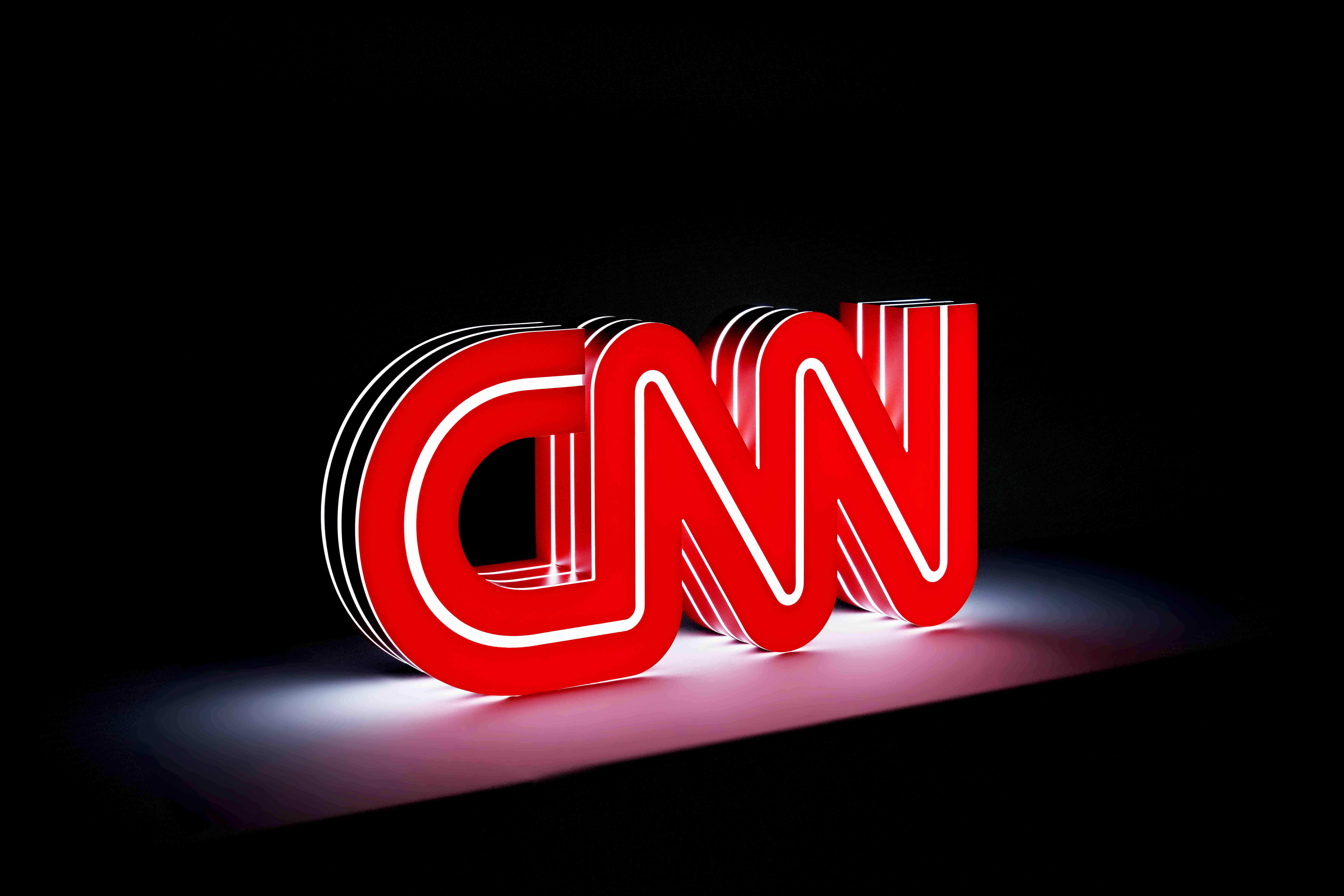

샘플 4

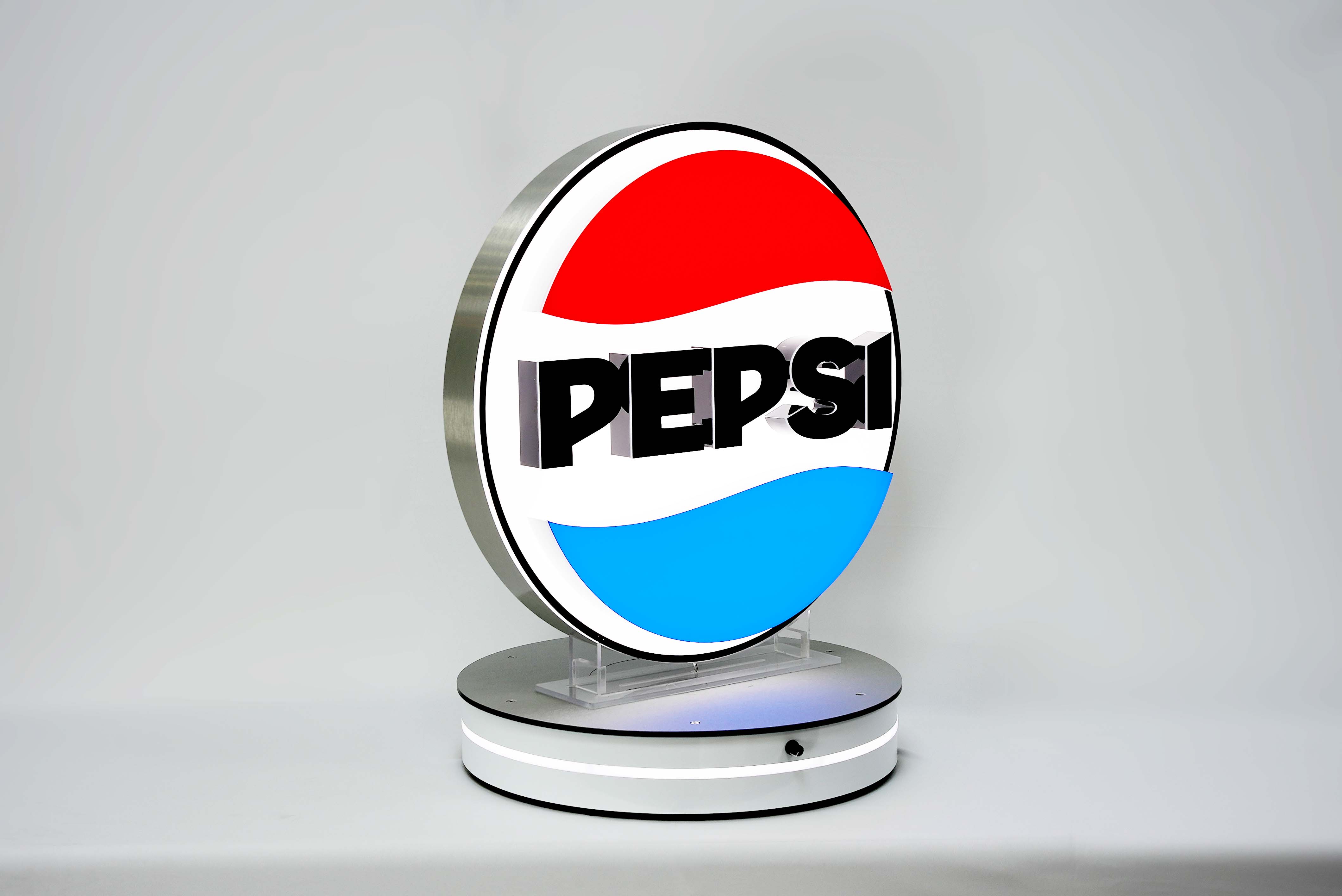

샘플 5

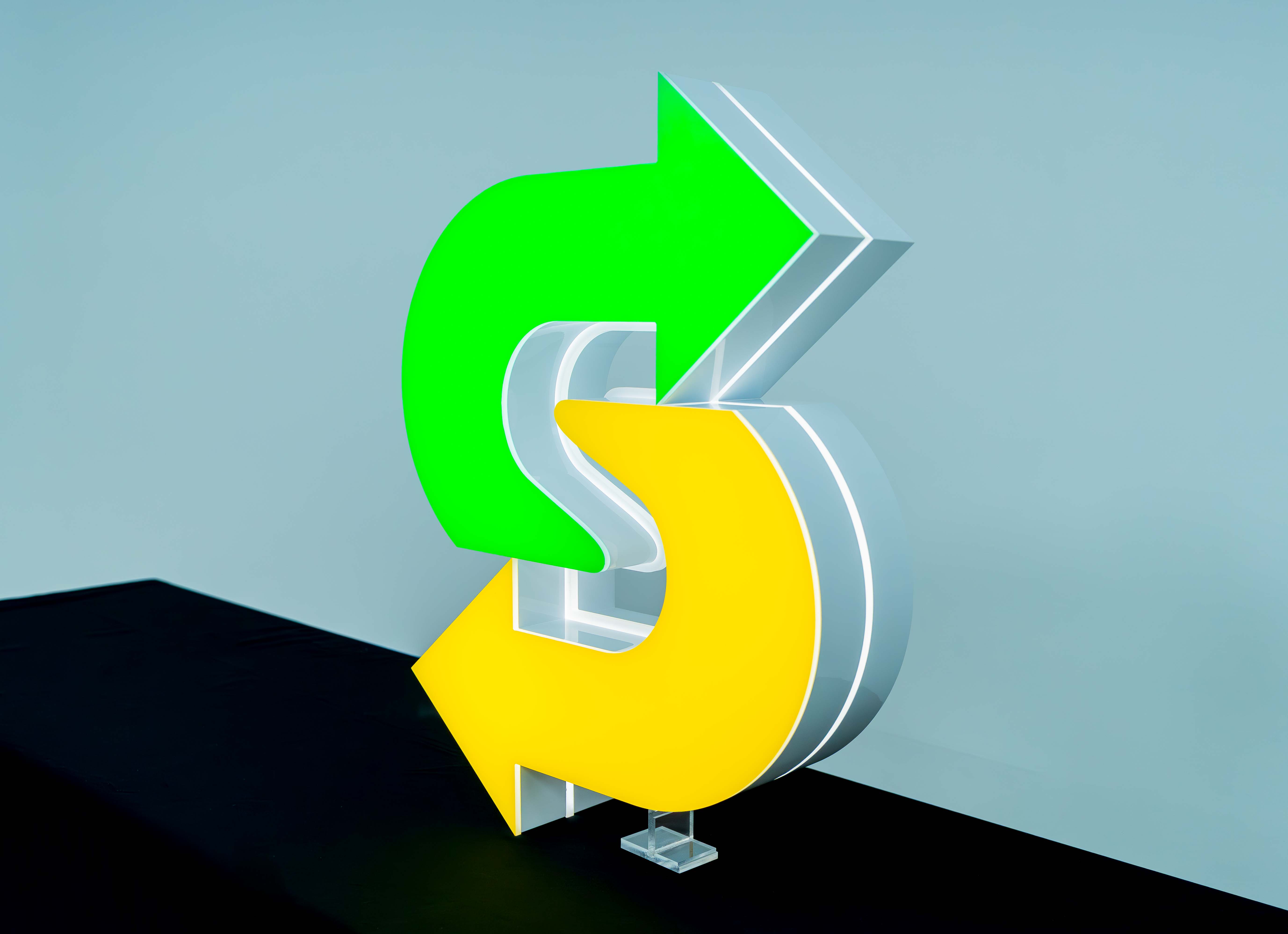

샘플 6

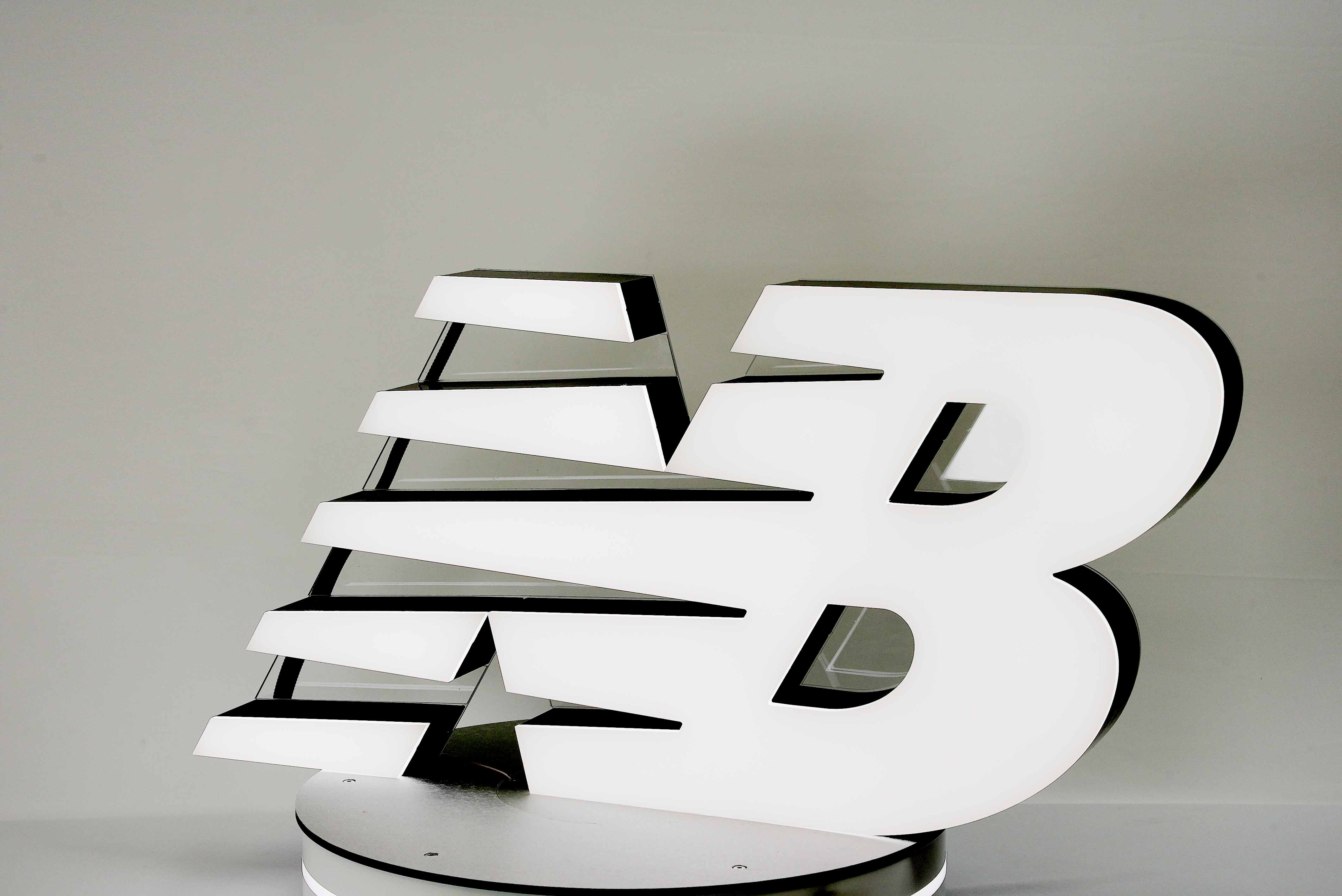

샘플 7

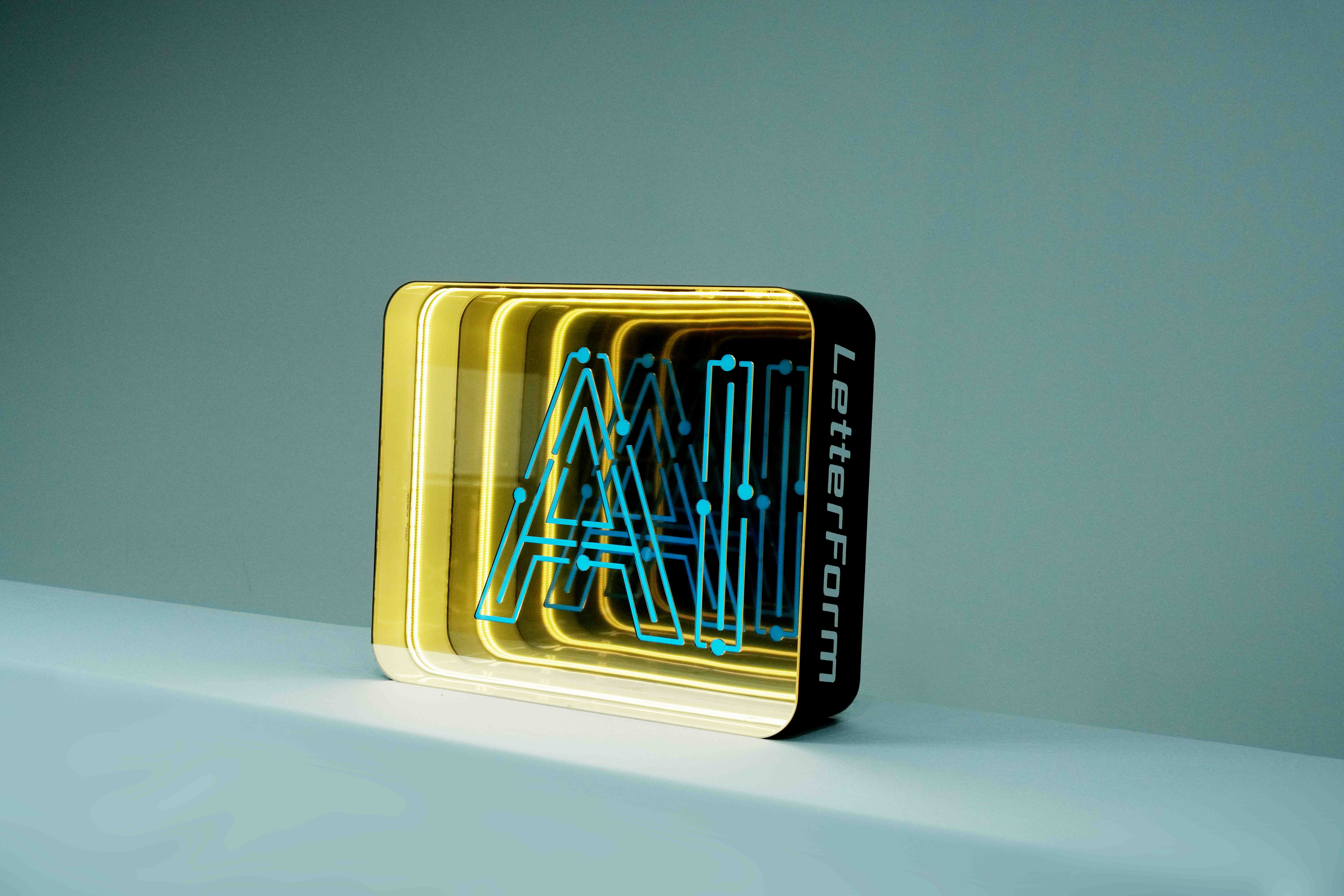

샘플 8

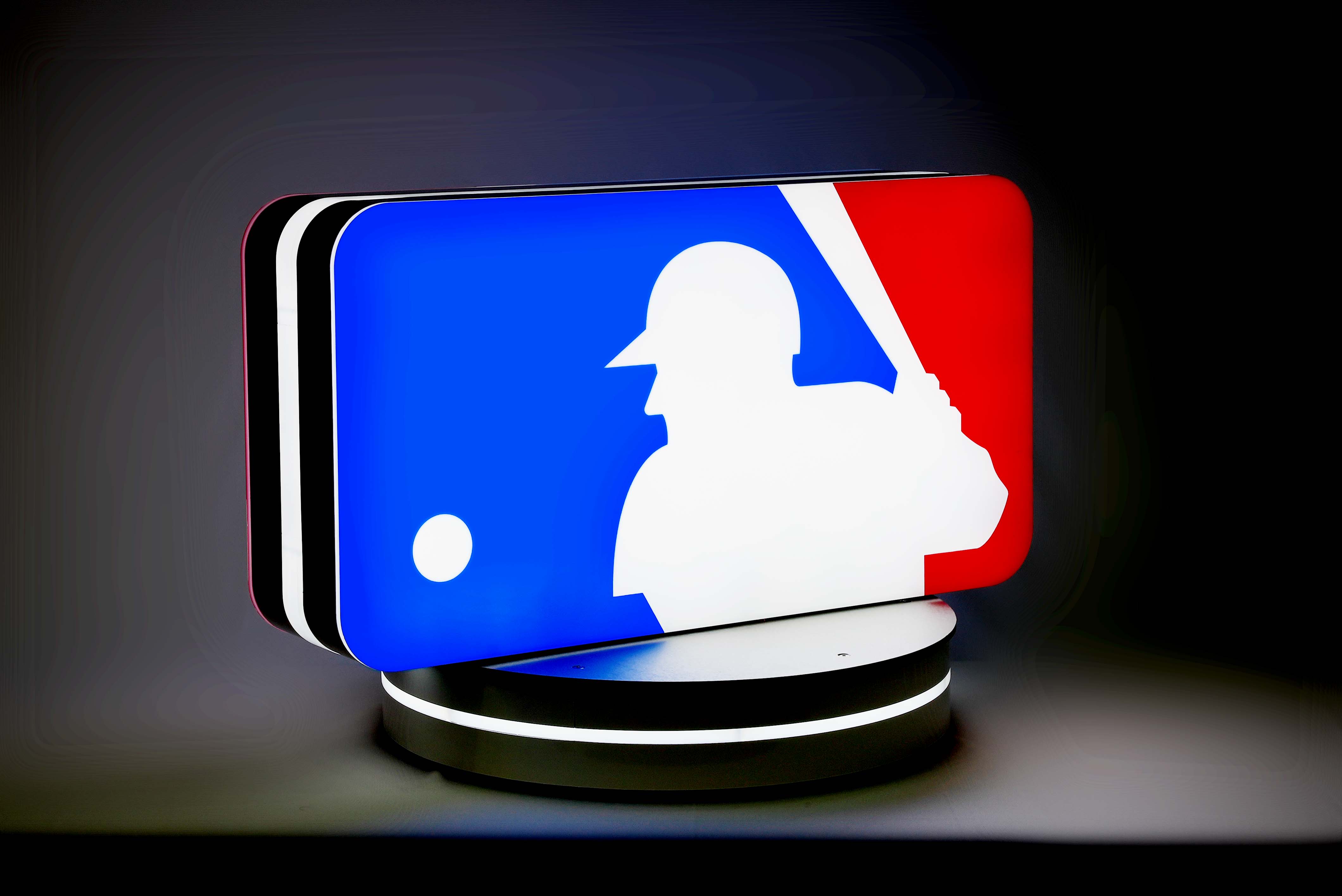

샘플 9

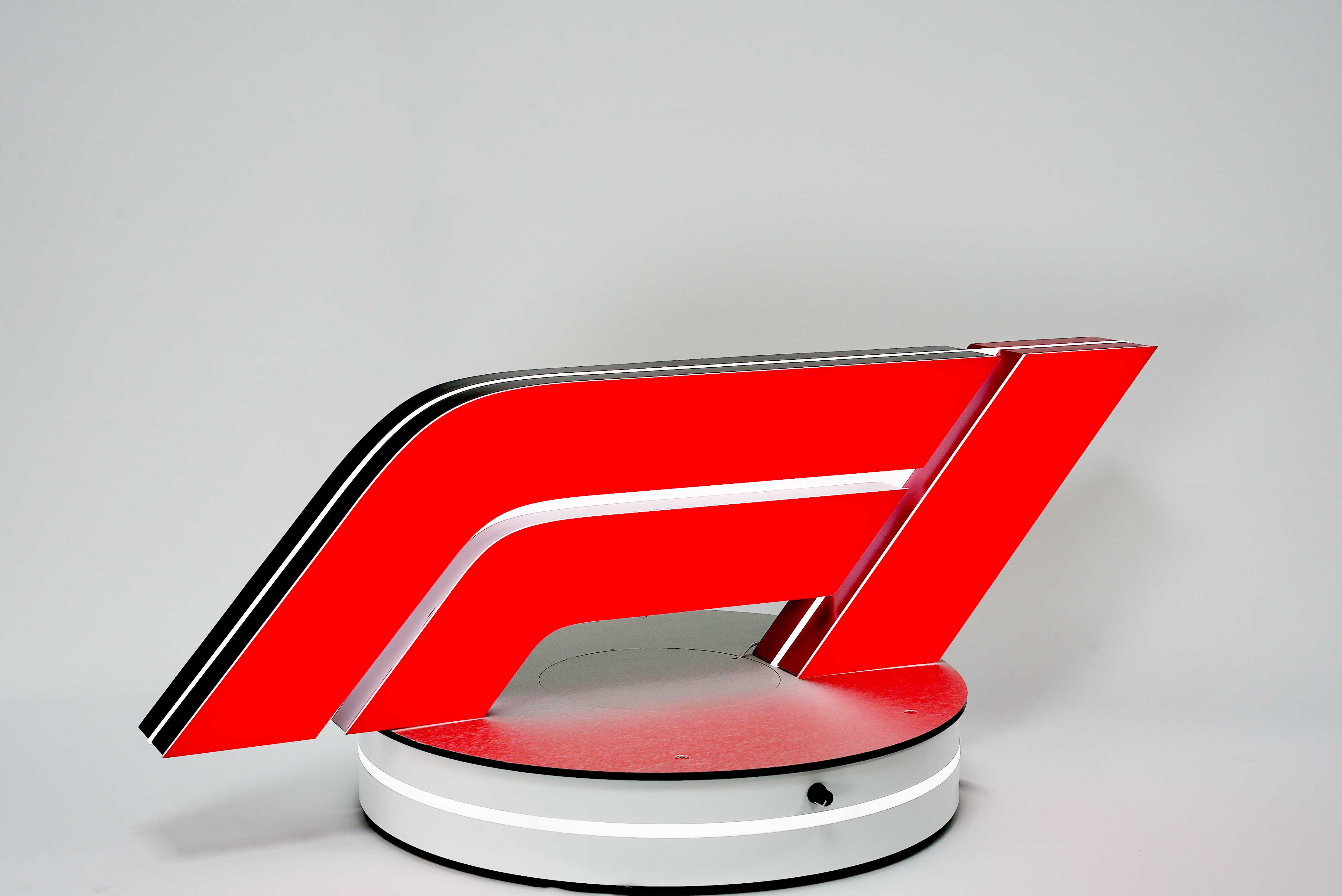

샘플 10

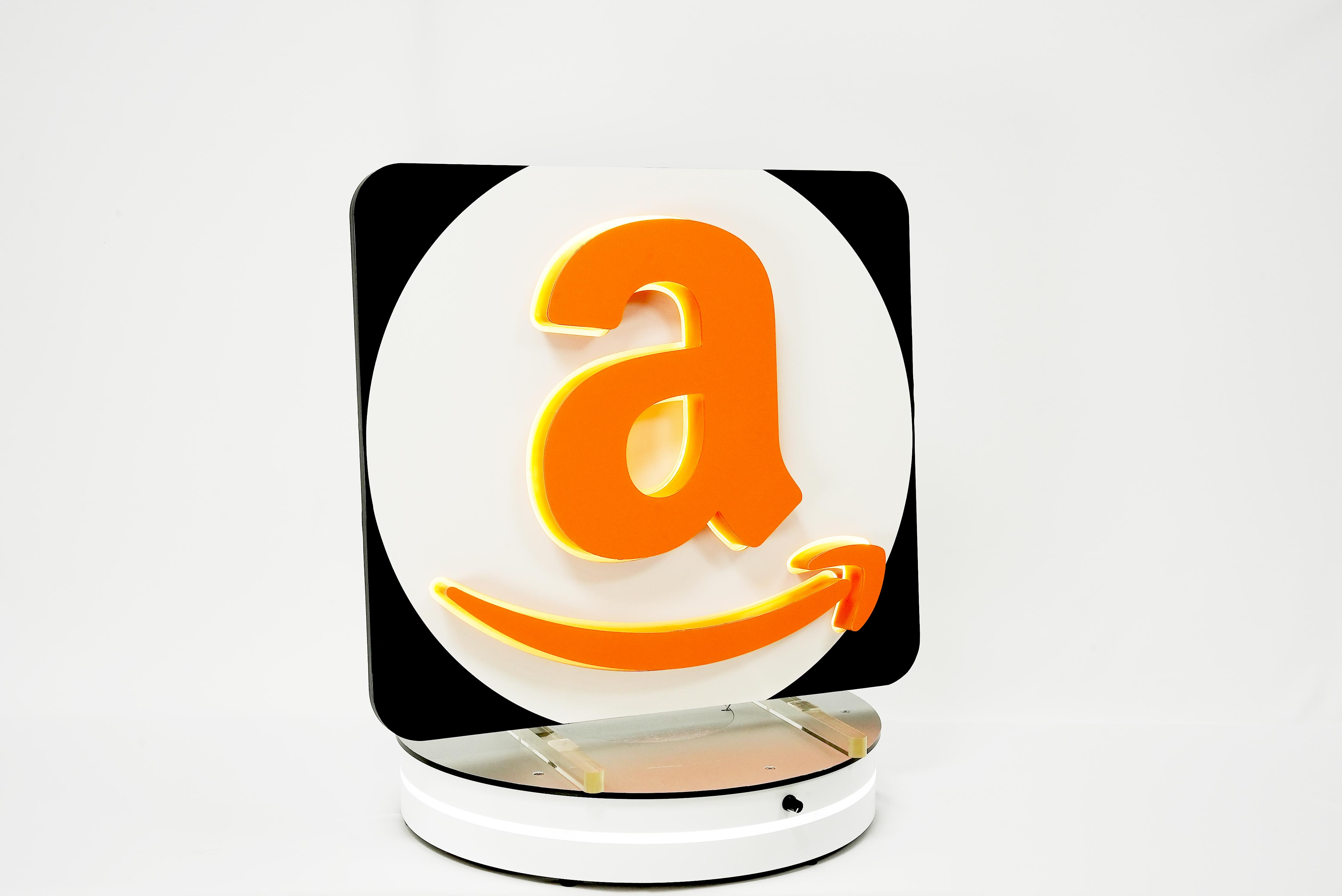

샘플 11

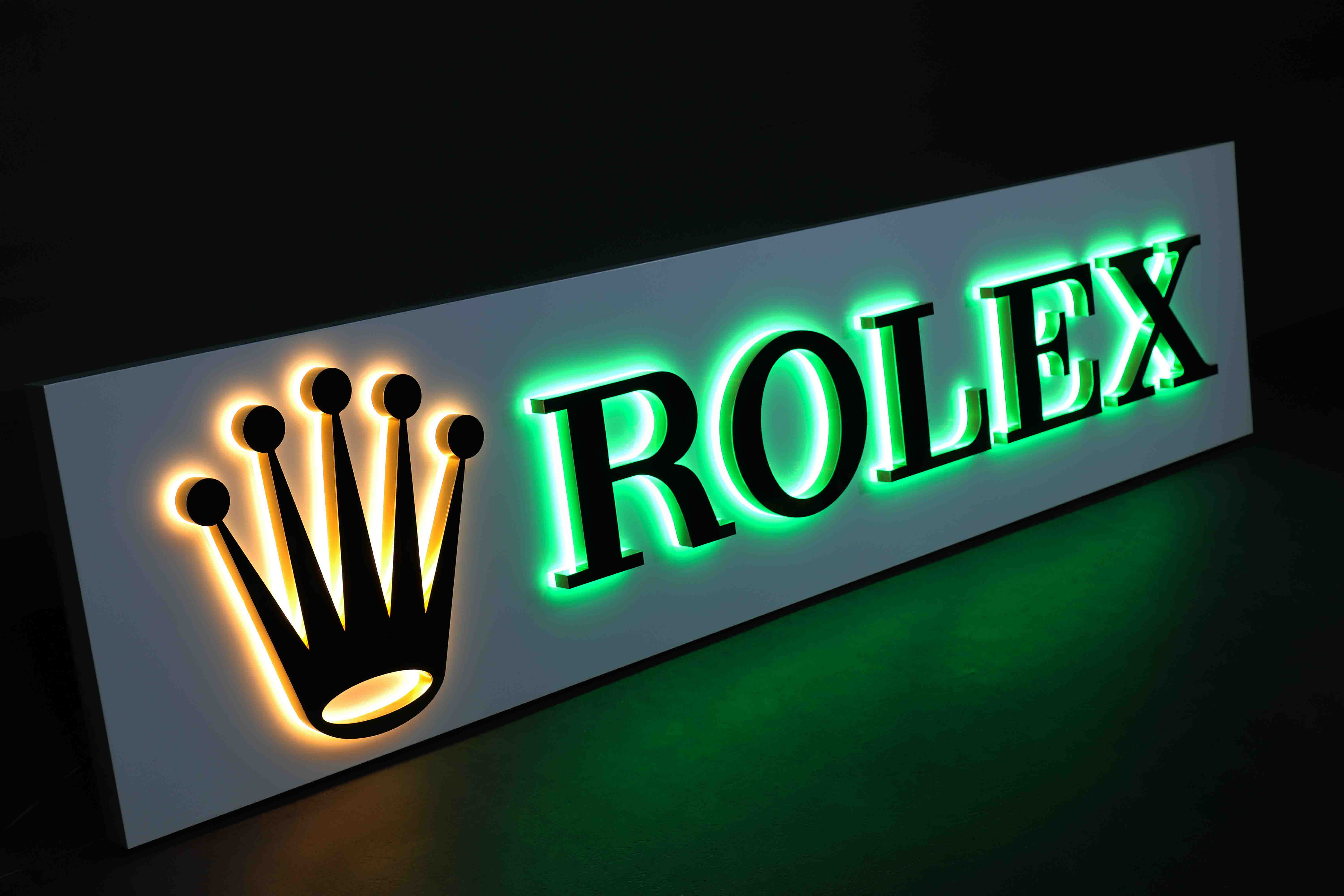

샘플 12

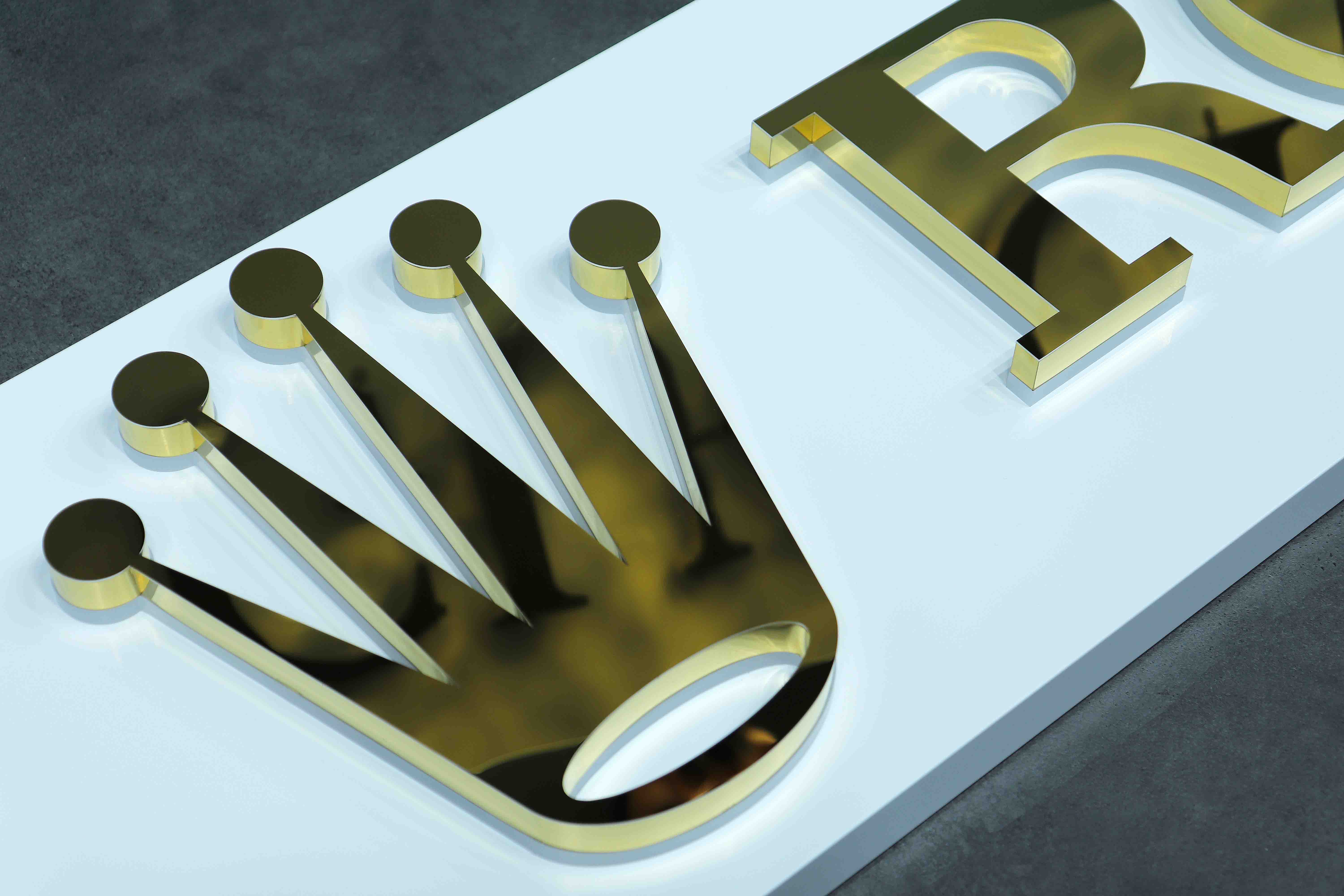

샘플 13

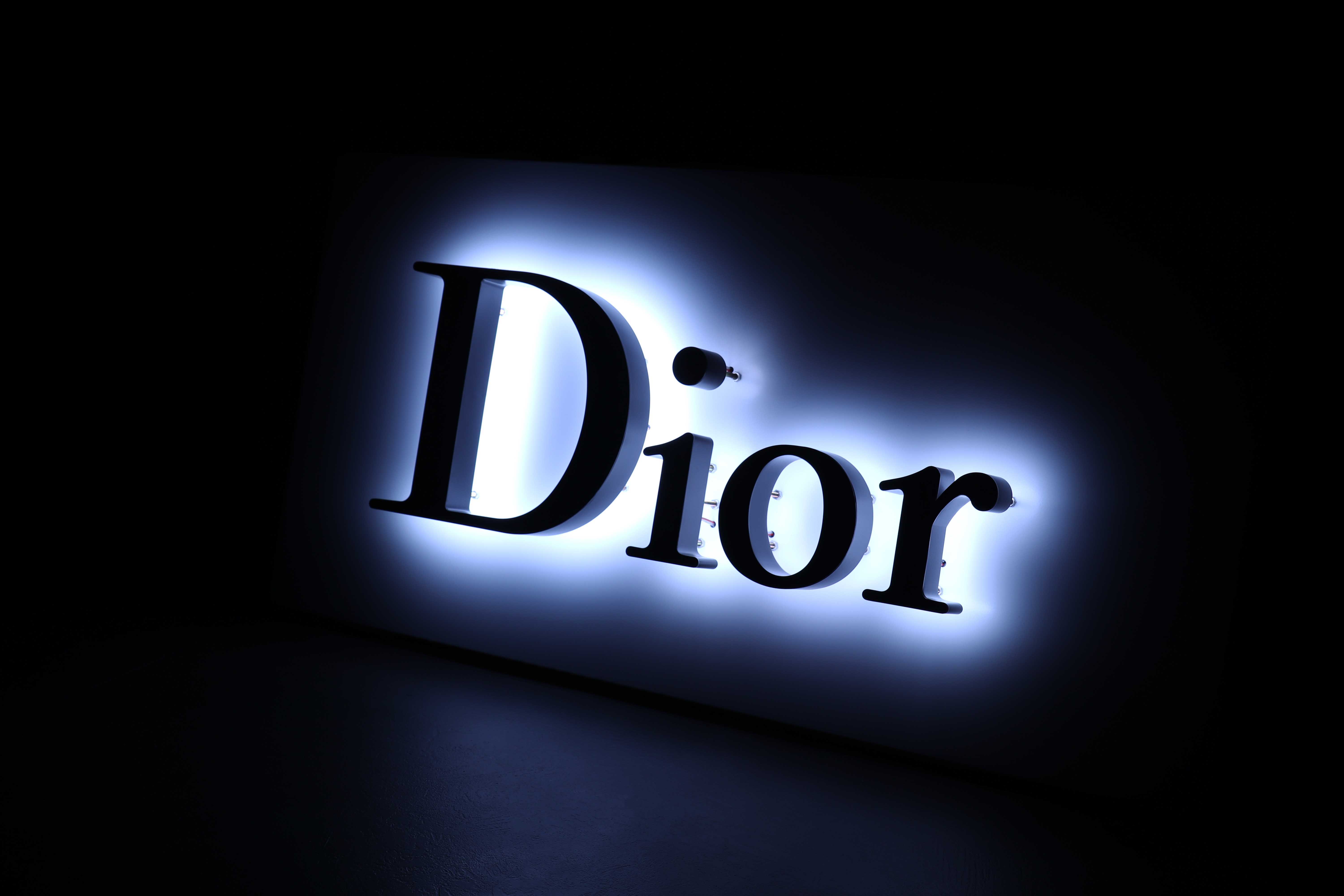

샘플 14

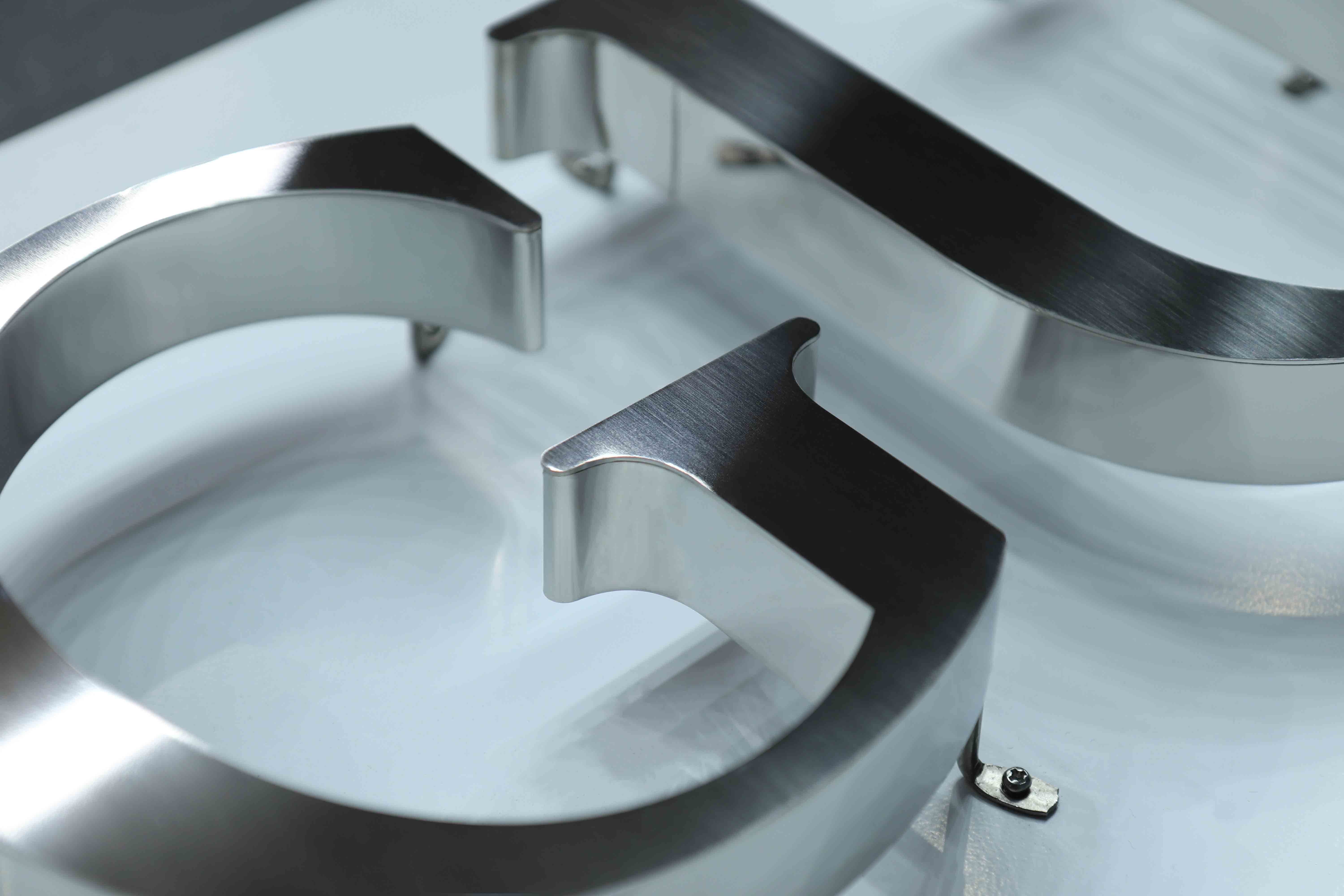

샘플 15

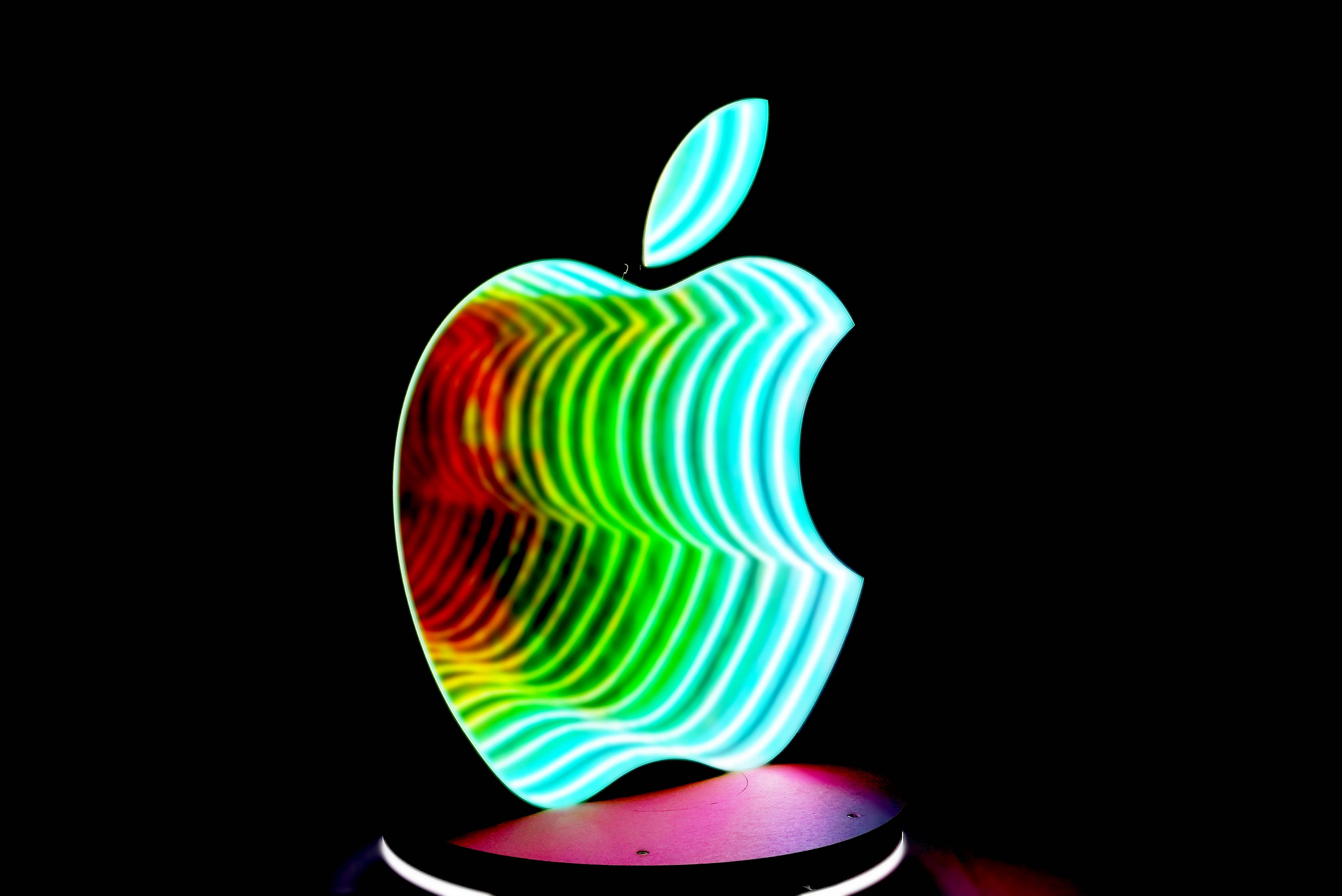

샘플 16

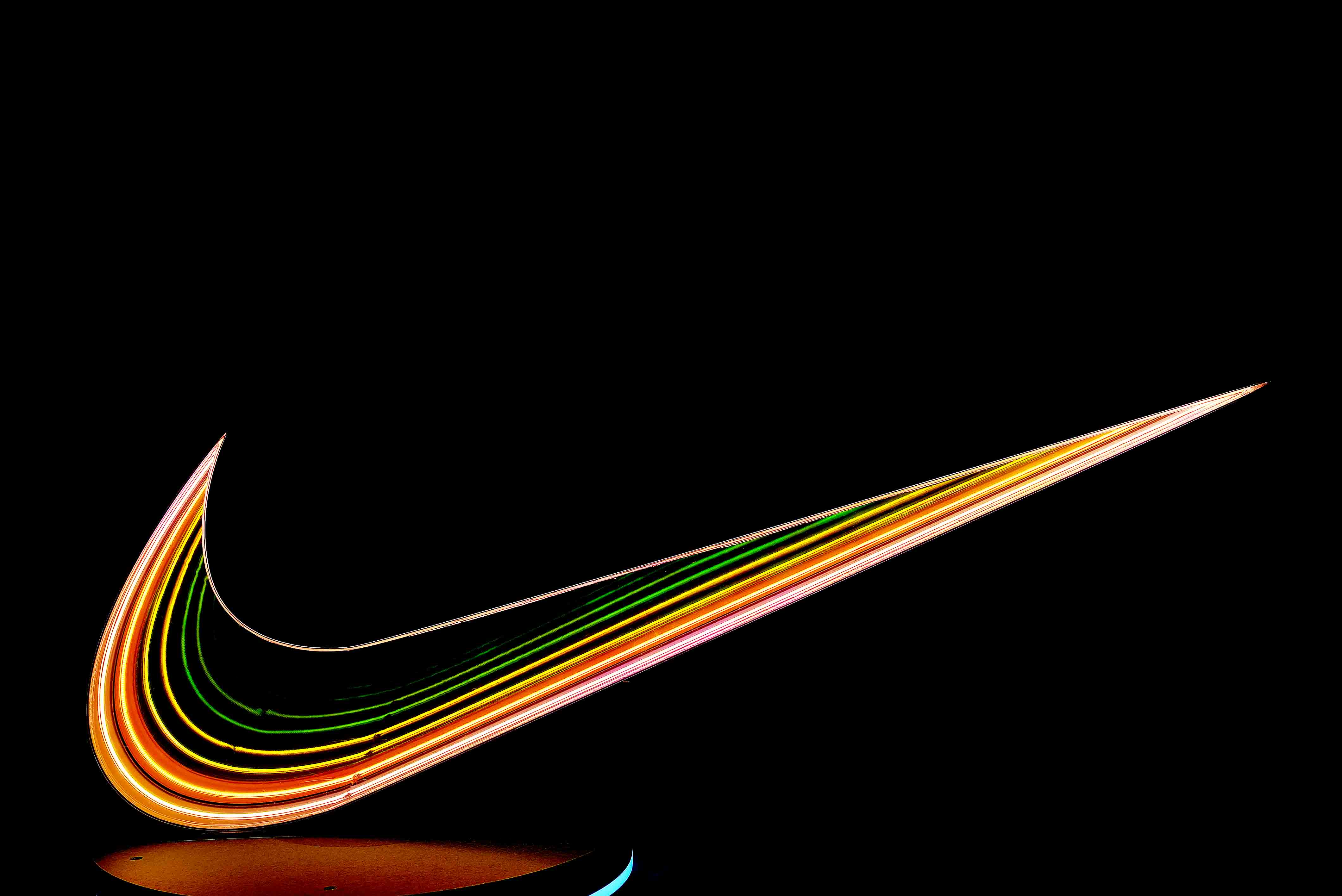

샘플 17

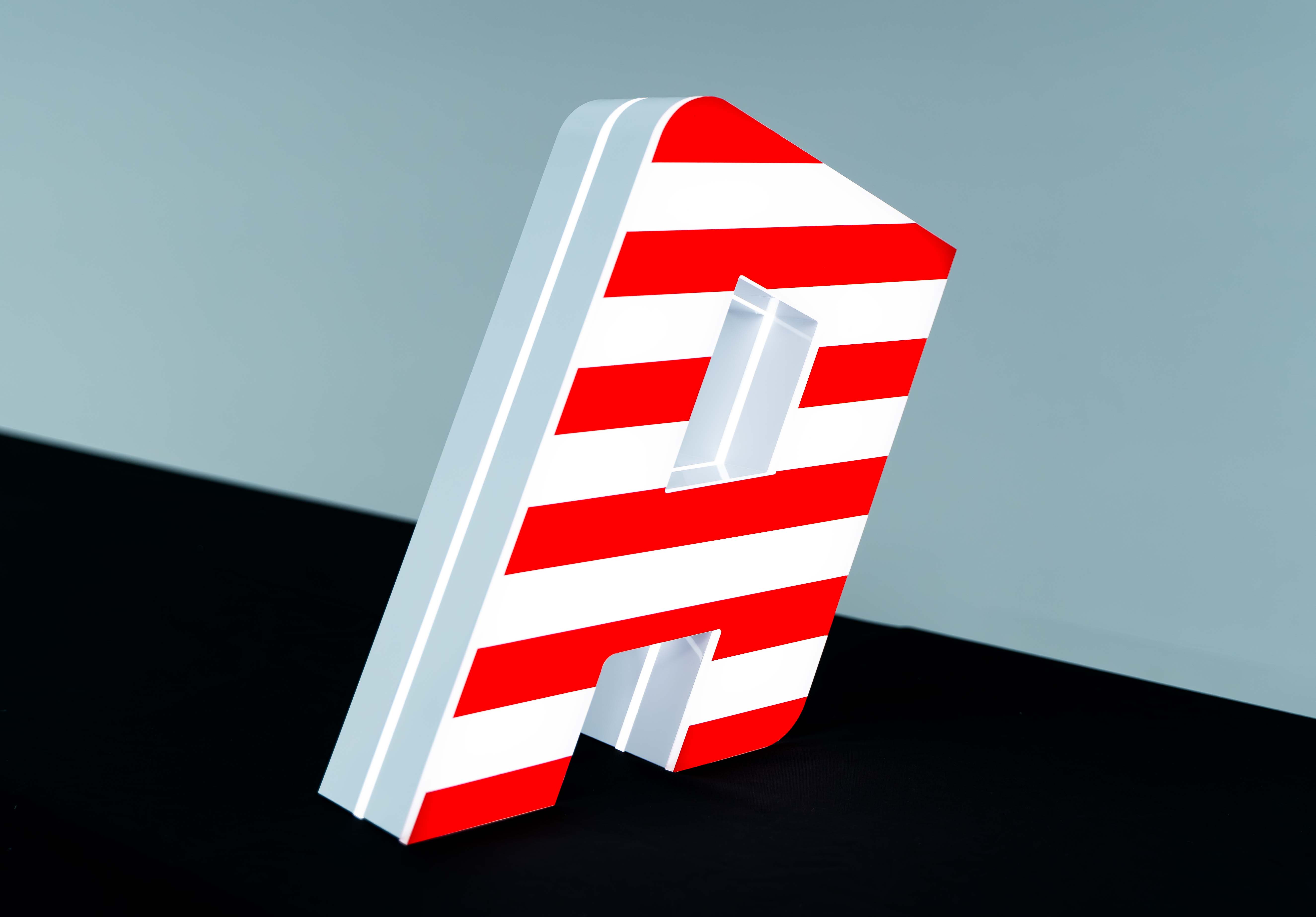

샘플 18

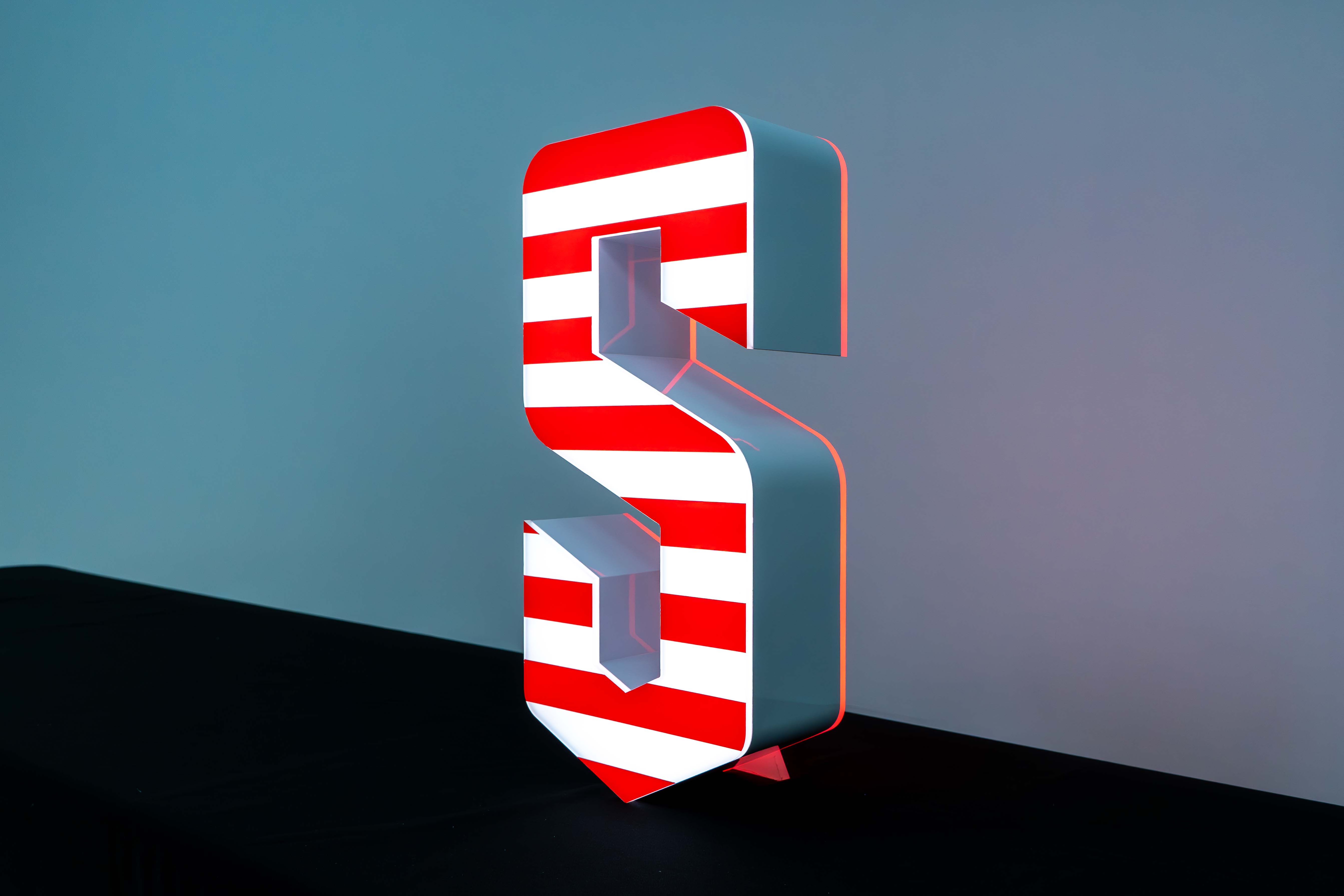

샘플 19

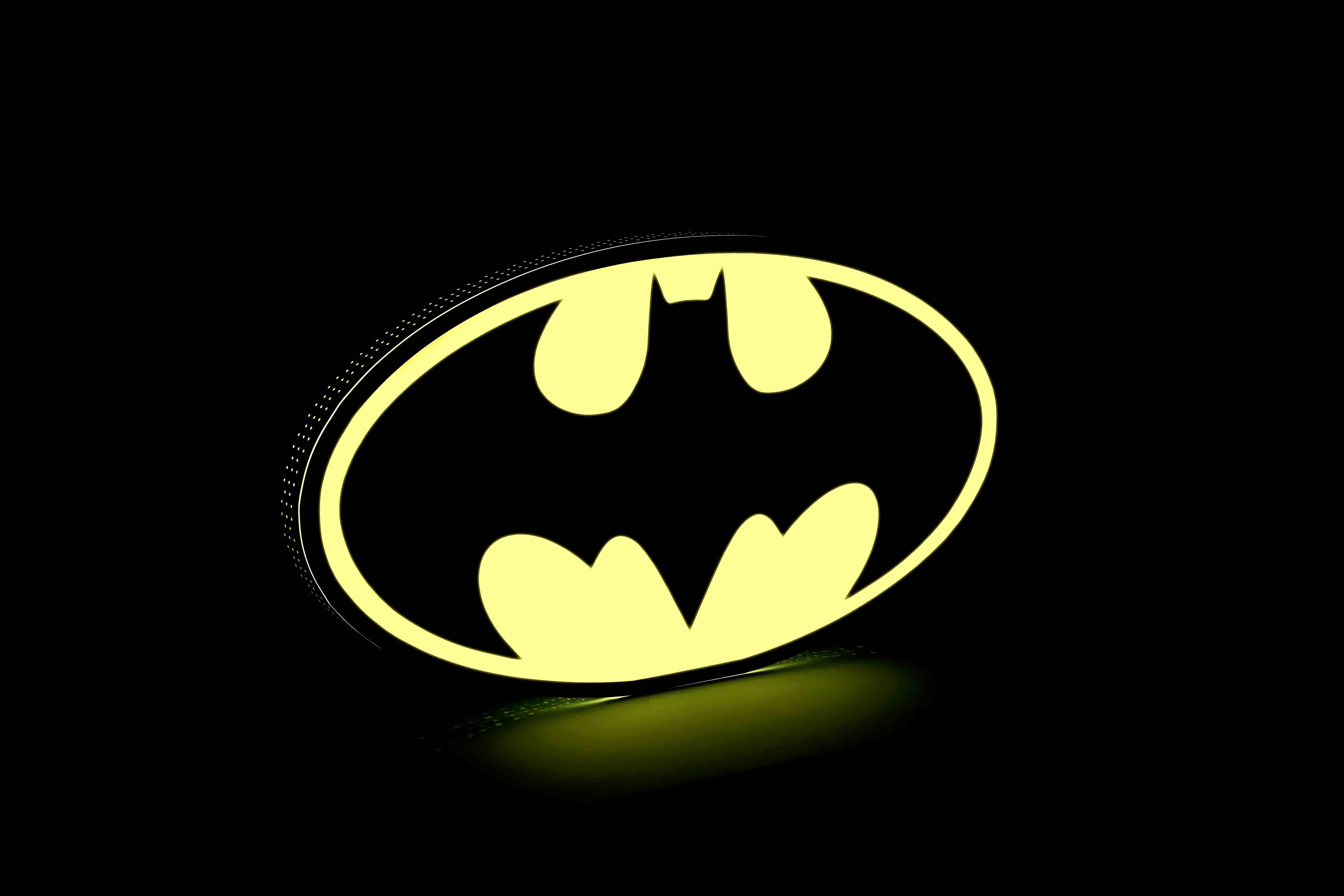

샘플 20
샘플 21
샘플 22
샘플 23
샘플 24
샘플 25

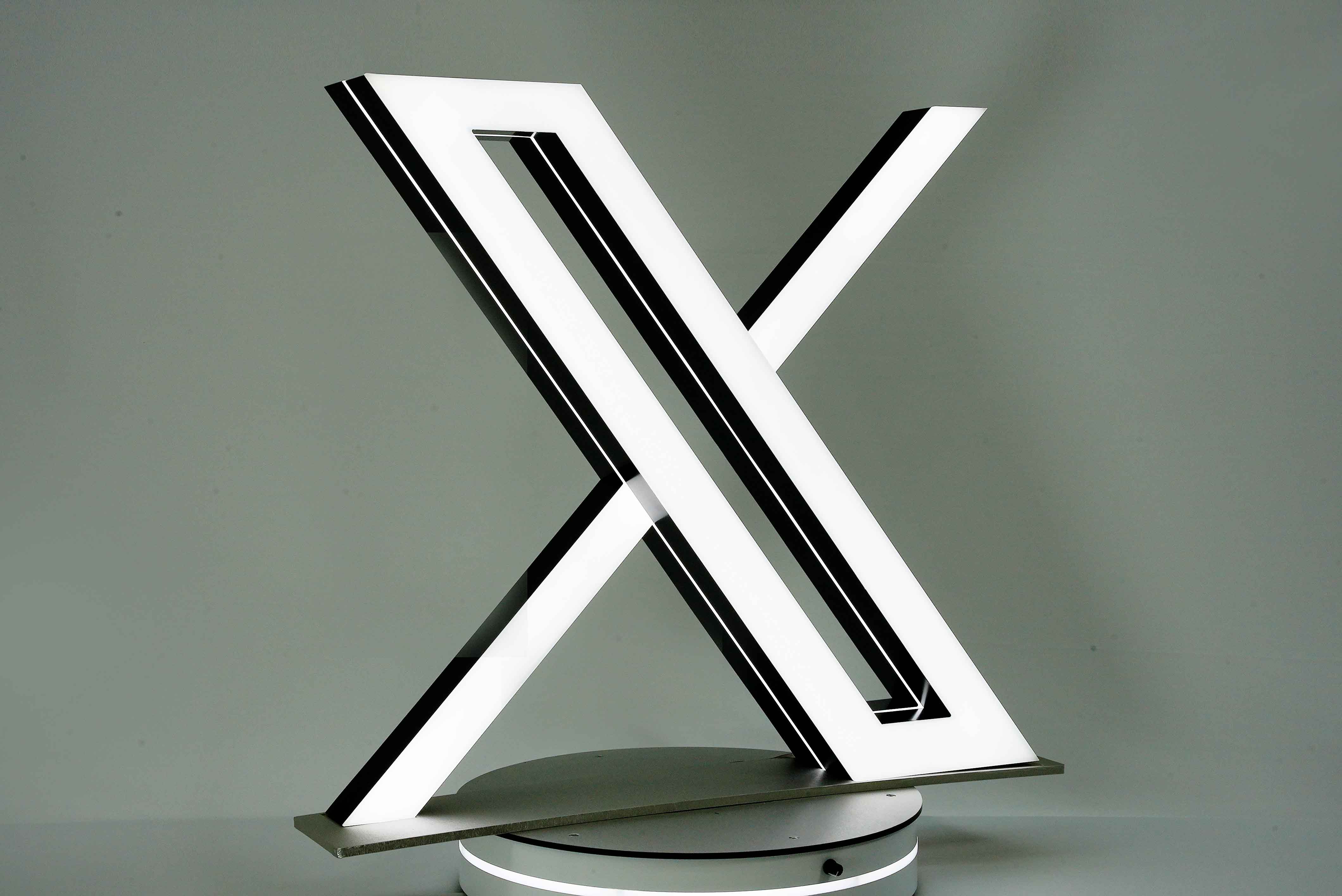

샘플 26
샘플 27

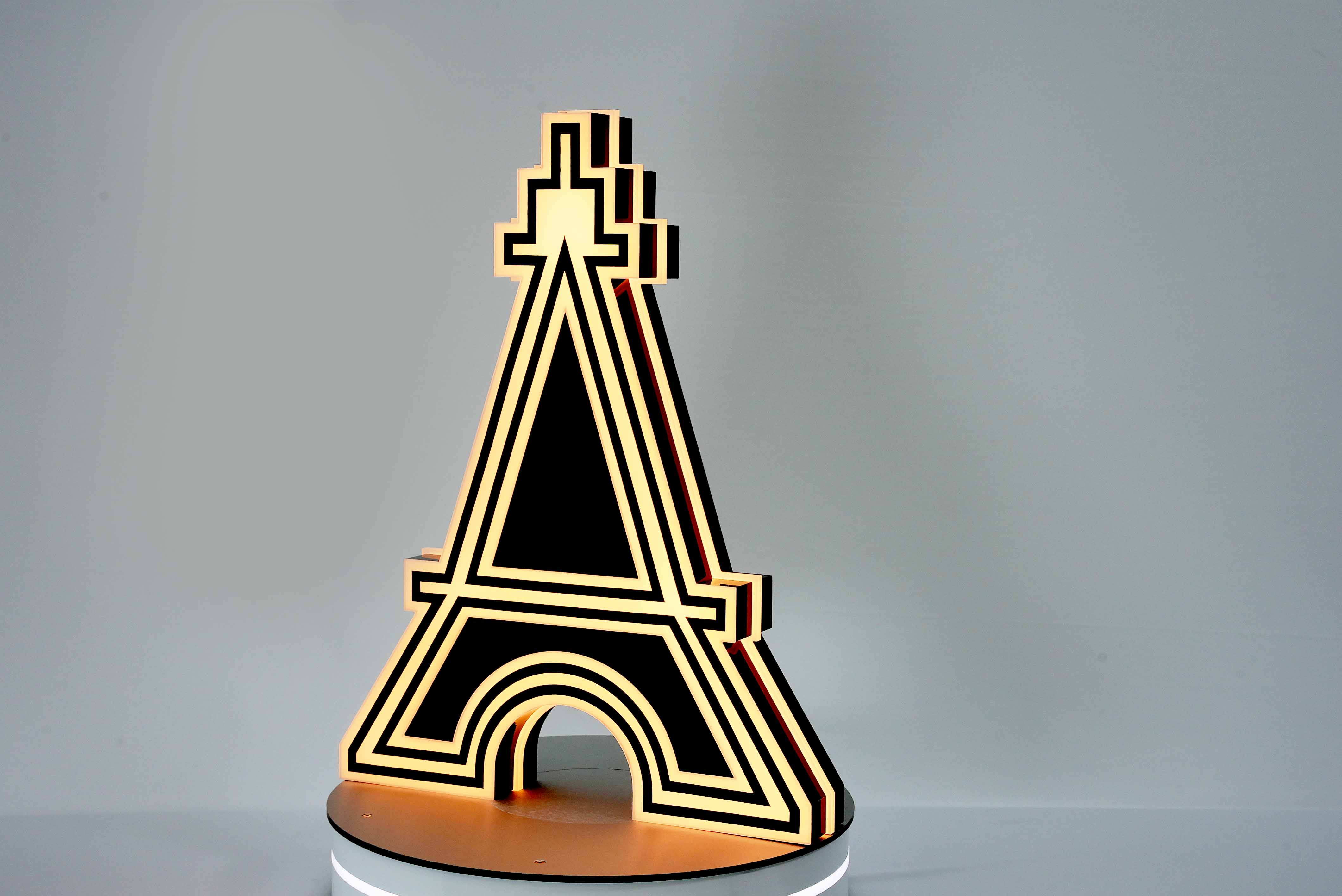

샘플 28
썸네일 3
썸네일 4
썸네일 5
썸네일 6
썸네일 7
썸네일 8
썸네일 9
썸네일 10
썸네일 11
썸네일 12
썸네일 13
썸네일 14
썸네일 15
썸네일 16
썸네일 17
썸네일 18
썸네일 19
썸네일 20
썸네일 21
썸네일 22
썸네일 23
썸네일 24
썸네일 25
썸네일 26
썸네일 27
썸네일 28
Specifications
벤딩
최대 밴딩 각도
180° 밴딩 시 최소 반경
끝점 최소 밴딩 가능 길이
시작점 최소 밴딩 가능 길이
120° - Coil
5mm - Coil
6mm
6mm
브로칭
바이트 타입
휠 타입
V 형태
50°, 80°, 100°, 120°
릴리프 컷
-
(브로칭 기반 Relief-cut 가능)
LetterForm
O
소재
코일
외경 660mm
두께 0.66mm - 1.6mm
높이 25.4mm - 127mm
LetterForm
두께 1.0mm
높이 37mm, 60mm, 100mm
길이 27m
파워
시스템
220VAC, Max.15A, 50/60Hz, 1P
사이즈 (W/D/H)
시스템
코일 카세트
2,180mm x 900mm x 1,650mm
760mm x 760mm x 1,450mm
Specifications
밴딩
최대 밴딩 각도
120° - Coil
180° 밴딩 시 최소 반경
5mm - Coil
끝점 최소 밴딩 가능 길이
6mm
시작점 최소 밴딩 가능 길이
6mm
브로칭
바이트 타입
V 형태
휠 타입
50°, 80°, 100°, 120°
릴리프 컷
(브로칭 기반 Relief-cut 가능)
LetterForm
O
소재
코일
외경 660mm
두께 0.66mm - 1.6mm
높이 25.4mm - 127mm
LetterForm
두께 1.0mm
높이 37mm, 60mm, 100mm
길이 27m
파워
시스템
220VAC, Max.15A, 50/60Hz, 1P
사이즈 (W/D/H)
시스템
2,180mm x 900mm x 1,650mm
코일 카세트
760mm x 760mm x 1,450mm
